Hi everyone...
Here the tuotorial to model the spur gear with involute profile. All images have number in sequence.
To calculate the gear dimensions can refer here. If you found any difficulties contact me >>> sathishkumarc14@gmail.com
STEP 1
STEP 2
STEP 3
STEP 4
STEP 5

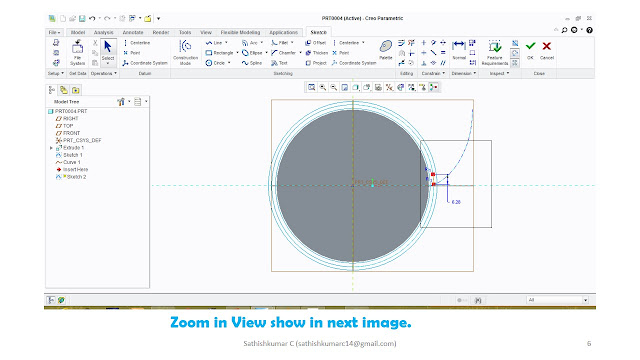

STEP 6
STEP 7
STEP 8
STEP 9
STEP 10

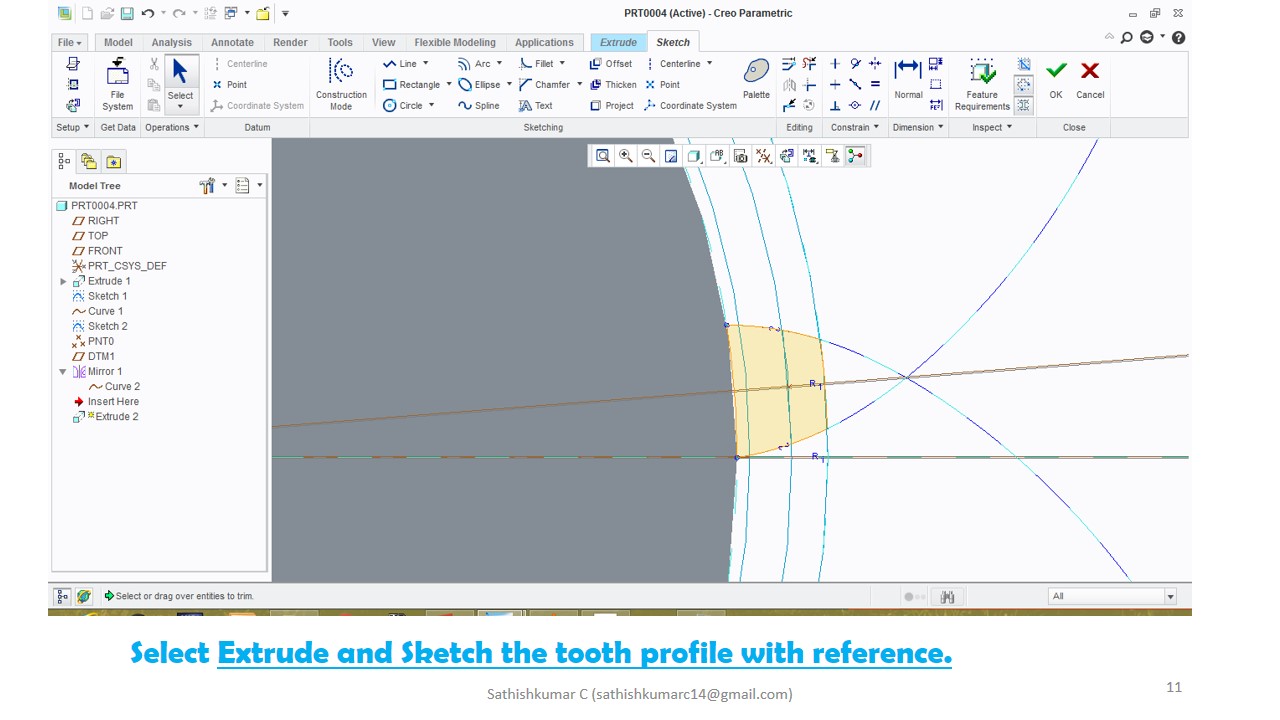

STEP 11
STEP 12
STEP 13
STEP 14
Here the tuotorial to model the spur gear with involute profile. All images have number in sequence.
To calculate the gear dimensions can refer here. If you found any difficulties contact me >>> sathishkumarc14@gmail.com
STEP 1
STEP 2
STEP 3
STEP 4
STEP 5
INVOLUTE PROFILE GENERATION EQUATION:
Base_radius = Base_diameter / 2
Angle = t*90
Cir_len = (PI * Base_radius * t ) / 2
X_PNT = Base_radius * cos(Angle)
Y_PNT = Base_radius * sin(Angle)
x = X_PNT + ( Cir_len * sin(Angle))
y = Y_PNT - ( Cir_len * cos(Angle))
z = 0
STEP 6
STEP 7
STEP 8
STEP 9
STEP 10
STEP 11
STEP 12
STEP 13
STEP 14
